About WISMEC Reuleaux RX75 TC Kit
If you talk about a high standard electronic cigarette manufacturer, WISMEC is one of the best options. It produces the finest ecigs manufactured in USA. There are a number of series by the company including Skyladon, el grande RDA alike and Presa 40w mod. WISMEC comes with a unique and highly creative design. Along with that, these e cigarretes have an economical price and have high durability. Hence, the number of vapers are getting attracted to this amazing brand for purchasing devices. There is no doubt that WISMEC eCigs are highly impressive.
One of the recent launches by WISMEC is the Reuleaux DNA200 which comes with limited quantity. The Reuleaux RX200 TC on the other hand comes with three 18650 cells, advanced TC technology and Joyetech chipboard. These featues make it a better option that other similar popular products. The Reuleaux RXmini is a compact device with built-in 2100mAH battery and wattage of 80 watts. The RXmini is smaller in size and comprises of a firmware with preheat function. This firmware can be upgraded according to user needs.
Product introduction
Parameters

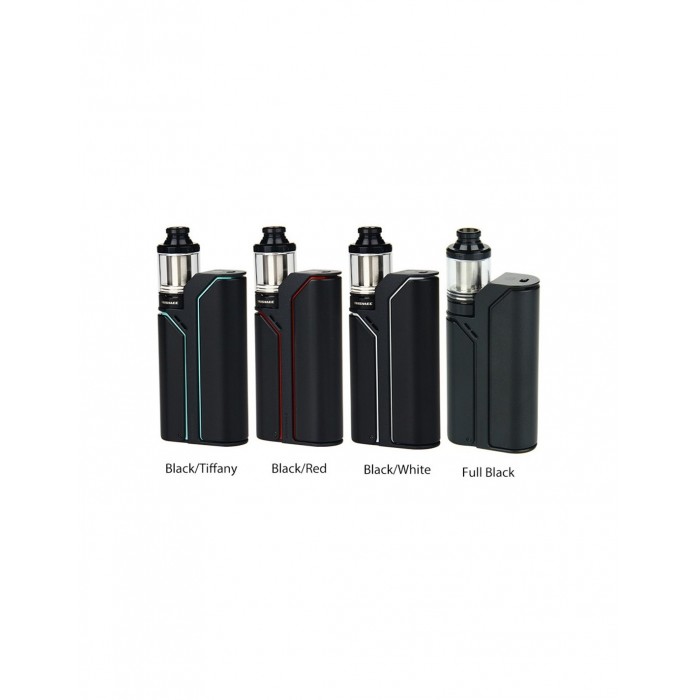

Reuleaux RX75
Size: 87 x 22.5 x 47mm
Output Wattage: 1-75W
Resistance Range: 0.05-1.5ohm for TC modes
Resistance Range: 0.1-3.5ohm for VW/ Bypass mode
Temperature Range: 100-315°C/ 200-600°F (TC modes)
Output Mode: VW/Bypass/TC-Ni/TC-Ti/TC-SS/TCR Mode
Cell type: High-rate 18650 cell (discharging current should be above 25A)
Thread Type: spring loaded 510 thread
Amor Mini
Length: 52mm
Diameter:22mm
Capacity: 2ml
WISMEC Reuleaux RX75 TC Kit contains
- 1 x Reuleaux RX75
- 1 x Amor Mini
- 1 x Clear Front Cover
- 2 x Atomizer Head (0.2ohm)
- 2 x Mouthpiece
- 2 x Pin Screw
- 1 x USB Cable
- 2 x User Manual (Reuleaux RX75 +Amor Mini)
- 1 x Warning Card
Simple packing. Customary Packing from the factory, the packing is subject to change without notice.
Features
Hidden Fire Button & Magnetic Back Cover
Replaceable Front Cover & Safety Lock Switch
Dual Circuit Protection Systems
Reverse Polarity Protection
75W High Power Output with Variable Temperature Control
Upgradeable Firmware
Stainless Steel Material & Detachable Structure
Top E-liquid Filling & Bottom Airflow Control
- It's an empty cartomizer, you still need order e-juice e-liquids to use it.
- It doesn't include a 18650 battery cell. We suggest you use constant discharge current 25A battery.
Operation Guide
Power on/off: press the fire button 5 times in quick succession to turn the device on and off.
Stealth function: While the device is on, simultaneously hold the fire button and left regulatory button. This will switch the screen display on and off.
Key lock function: While the device is on, simultaneously press the two regulatory buttons. This will switch between Key lock and Key unlock function.
Safety lock switch: Move the lock switch right/left to lock/unlock the fire button so that unintentional press could be avoided.
Switch the display mode: By pressing the left and right regulatory buttons simultaneously under shutdown state, the screen display will rotate 180 degrees. You can view the screen from two kinds of angle through this operation.
Shit among VW/Bypass/TC-Ni/TC-Ti/TC-SS/TCR mode: Press the fire button 3 times to enter the menu, and press the right regulatory to switch between the six modes. Press the fire button, or leave the display to flash 10 times on the current setting to confirm and exit the menu.
Atomizer Head Replacement: Unscrew the atomizer base form the atomizer tube, and the atomizer head is located on the base. Just screw it and replace a new one.
Liquid filling: Unscrew the top cap from the vent pipe, inject the e-juice directly into the atomizer. After filling, screw the top cap onto the atomizer tube again.
Guarantee
3 months of the RX75 MOD. Please check guarantee policy.
click download to get certificate: ROHS
