About VapeOnly vCat Starter Kit 1100mAh
VapeOnly is known as a high-end electronic cigarette brand that produces luxurious, high-powered and efficient mods for every vape enthusiast, no matter what their preferred styles are. This brand is constantly updating their styles and selections, determined to never let their customers down. Their newest products, including the VapeOnly vPipe kit, the VPulse battery and their unique cartomizers, can all be found here as well as a vast selection of other VapeOnly products for your consideration, all at a low prices.
vCat has the battery, cartomizer and starter kit that you need. It has compatibility with the vCat BCV, vPlum and vAir D16. On top of that, you have a removable mouthpiece as well as a patented button with dedicated power level indicator.
VapeOnly vCat Starter Kit - 1100mAh
Video Reviews by Dan Vapeman Badgley
Product Instructions
Parameters
Size of battery (Length x Diameter): 109 x 14.0mm
Size of cartomizer (Length x Diameter): 67.6 x 14.0mm
Working voltage: 3.3V-4.2V
Maximum current: 3.5A
Battery capacity: 1100mAh
Coil resistance: 1.8ohm Atomizer
capacity: 1.5ml
Materials: stainless steel, copper hardware, glass, rubber seal components

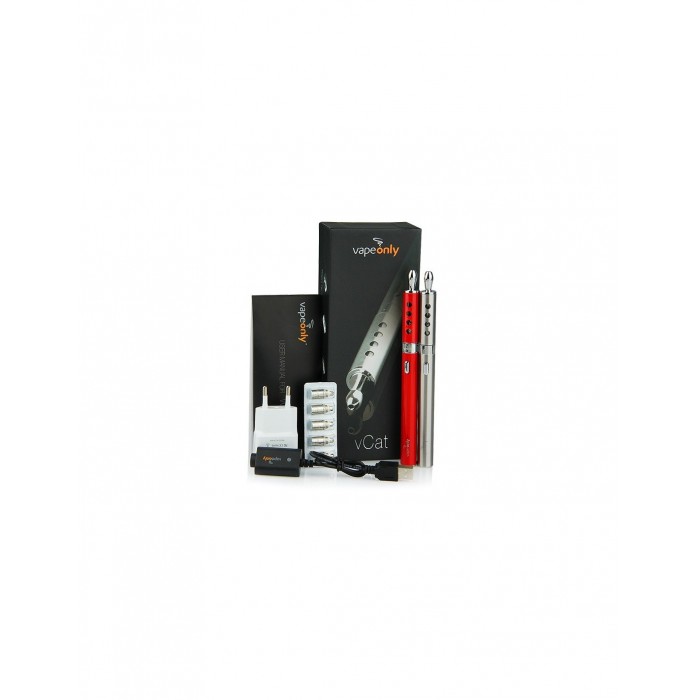

VapeOnly vCat Starter Kit 1100mAh contains
- 2 x vCat Cartomizer
- 2 x vCat 1100mAh Manual Battery (1pc silver +1 pc black/blue/green/purple/red )
- 7 x Replacement BVC Coils, 2 pcs pre-installed in the cartomziers
- 1 x USB Charger
- 1 x AC-USB Adapter 1.0A
- 1 x Manual (English)
Simple packing. Customary Packing from the factory, the packing is subject to change without notice.
Detailed Instructions
Features
1. Transparent “cat’s eye†window design
2. Pyrex glass cartomizer with metal cover protection
3. Patented button with power level indicator
4. Full voltage output
5. Short circuit protection
6. Battery protection
7. VapeOnly vAir D16 Replaceable BVC Coil Unit
Operation Guide
Power on/off: vCat battery can be powered on or off by 5 quick clicks on the button.
How to refill the cartomizer
- Hold the connector base and screw off the cartomizer form the battery. - Turn upside down the cartomizer.
- Screw off the connector base and fill in no more than 1.5ml e-liquid.
- Carefully screw on the base connector (coil unit loaded) and clear surplus liquid.
- Wait 1-2 minutes for the e-liquid to feed into the coil before you start vaping. Or Give the cartomizer a quick shake to make it faster.
- Screw onto your battery and start vaping.
How to change replacement coil
- Turn upside down the atomizer and screw off the bottom base
- Disconnect the old coil unit from the bottom base, replace with a new one.
- Screw the base back to the tube tightly.
Usage of vCat 1100mAh Manual Battery
- The vCat 1100mAh Manual Battery fits both eGo and 510 threaded cartomizers.
- Five-click lock: Five quick clicks of the button will activate the battery. Another five clicks will inactivate it. LED blinks after when it’s activated or locked.
- Patented button with power level indicator: >3.9V, green LED indicator;3.6V-3.9V, blue LED indicator; <3.6V, red LED indicator.
Charging
Simply connect the battery to a standard USB output port through the USB charger to charge the battery. LED light will blink 5 times to
indicate it starts charging. While charging, it shows green LED if battery voltage is above 4.15V, and shows red if below 4.15V. It takes
about 2.5 hours for a full charge.
Order Tips
- It's an empty cartomizer, you still need order e-juice e-liquids to use it.
- You can choose the replacement coil unit here.
- There is CE mark on the battery's thread.
- vCat kit - 650mAh is available here.
Guarantee
Please check Guarantee Policy
Guarantee period: 6 months for batteries, no warranty for the rest spare parts.
