About VapeOnly Arcus Express Kit 900mAh
VapeOnly is known as a high-end electronic cigarette brand that produces luxurious, high-powered and efficient mods for every vape enthusiast, no matter what their preferred styles are. This brand is constantly updating their styles and selections, determined to never let their customers down. Their newest products, including the VapeOnly vPipe kit, the VPulse battery and their unique cartomizers, can all be found here as well as a vast selection of other VapeOnly products for your consideration, all at a low prices.
Arcus has a lot going for it. You have a 900 mAh battery, a stunning design and a 2ml Arcus atomizer. You can easily have mouth inhale and mouth to lung inhale. You can also decorate the Arcus atomizer with sealing rings if you want, all the accessories are available on the store.

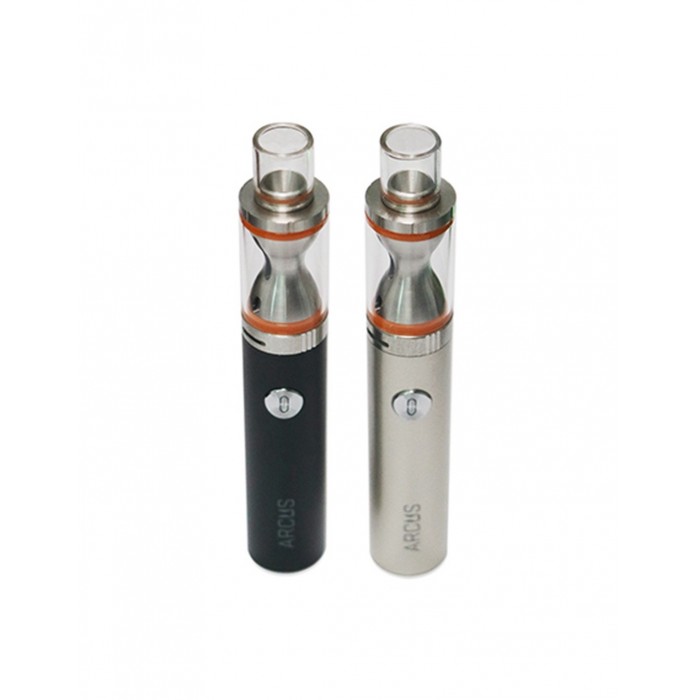

VapeOnly Arcus Express Kit - 900mAh
Product Instructions
Parameters
Size: 16.8mm (D) x 104mm
Working voltage: 3.3V - 4.2V (not adjustable)
Working wattage: 7W - 17W (not adjustable)
Battery capacity: 900mAh
e-Juice capacity: 2ml
Coil resistance: 1ohm (10W-17W);1.5ohm (7W-11W)
Material: SS + Pyrex Glass
Color: Steel, Black, Gold
VapeOnly Arcus Express Kit 900mAh contains
- 1 x Arcus battery - 900mAh
- 1 x Arcus atomizer -2ml (pre-installed 1ohm coil and orange o-rings)
- 1 x 1.5ohm coil
- 1 x USB cable
- 8 x O-rings (Green, Blue, Purple, Black)
- 1 x Extra SS mouthpiece
- 1 x Manual
Simple packing. Customary packing from the factory, the packing is subject to change without notice.
Features
Ultrathin size, more portable.
Innovative top filling, quick and easy.
Good mouth inhale experience.
Clear and simple light indicators, to help distinguish different kinds of battery modes.
Built-in 900 mAh high-quality lithium battery.
Power On: Press power button 5 times in succession within 2 seconds to turn on the battery and you will see the white LED light flashes 5 times. (Red LED light will flash 5 times if the battery is low. If this occurs please charge it up).
Power Off: Press power button 5 times within 2 seconds to turn off the battery and you will see the white LED light flashes 5 times. (Red LED light will flash 5 times if the battery is low. If this occurs please charge it up).
Vaping: Press power button and inhale (1 second to 10 seconds at one time). White LED light will illuminate when you press the power button and go out once you release.
How to fill the cartomizer?
1. Unscrew the top component anti-clockwise from the top of the cartomizer.
2. Fill the e-liquid from the top, the e-liquid should not be over the little hole on the top.
3. Install the top component clockwise on the top of the atomizer.
Air flow adjustment
1. Turn clockwise to increase airflow.
2. Turn anti-clockwise to decrease airflow.
How to replace/clean the coil?
1. Hold the atomizer upside down, remove the air adjusting ring component from the bottom of the atomizer upward, anti-clockwise.
2. Disconnect the old coil unit.
3. Install the new or cleaned coil unit into the atomizer. (Clean the coil with alcohol sponge or dry cotton cloth).
4. Connect the air adjusting ring component downward and screw it on tightly.
Power warning/indicator: Press power button when battery is on and check LED light's color: LED light in white indicates normal voltage; when LED light in red, please charge your battery.
Short circuit: When the battery is on, if a short circuit occurs whilst connected to the battery or atomizer, the red LED light will produce a single flash 10 times and the battery will go onto standby mode when you press the power button. (If this indicator is displayed, it could be coil, atomizer or the battery short circuit. We suggest you change the coil to test firstly, if it does not work, you can try with another electronic cigarette, and connect to the coil, atomizer and battery in turn to find the fault. )
Low resistance protection: When the battery is on, atomizer will not work if its resistance is lower than 0.3Ω when you press the power button. The white LED light will double flash 5 times with the battery going to standby mode.
Open circuit: When the battery is on, if under open circuit situation or no atomizer is connected, the white LED light will have a single flash 10 times with the battery going to standby mode when you press the power button. (If this indicator is displayed, it could be coil, atomizer, or the battery open circuit. We suggest you change the coil to test firstly, if it does not work, you can try with another electronic cigarette, and connect to the coil, atomizer and battery in turn to find the fault. )
Low-voltage protection: When the battery is on and the voltage is low, hold down the power button, the white and red LED light will flash 5 times each alternatively with the battery going to standby mode and not working. Then please charge your battery.
10 seconds cut-off time: When the battery is on, if the power button is held for more than 10 seconds, the white LED light will triple flash 5 times with the battery going onto standby mode.
Overheat Protection: When the battery is on, hold down the power button, the red LED light will triple flash 5 times with the battery going onto standby mode if the temperature of the device is higher than the setting point.
Battery Overload Protection: When the battery is on, hold down the power button, the red LED light will double flash 5 times with the battery going onto standby mode if the voltage is lower than 3.5V, and the resistance is lower than 0.5Ω.
- No e-juice. You shall purchase it separately.
- The VapeOnly Arcus Battery, VapeOnly Arcus Atomizer and Arcus coils are also available in VapeNico.
Guarantee
3 months for Arcus battery. Please check guarantee policy.
