About Aspire Elite Kit 3000mAh
Aspire is a rising sensation in the world of e-cigarettes and is well on its way to becoming a well-known vaping brand. Currently, aspire is focused on providing the high quality batteries and cartomizers. The most popular products of Aspire are Aspire CF battery series, and Nautilus Mini Series. Being a revolutionary in its field, Aspire is aiming to lead electronic cigarette to level higher than ever before.
The Atlantis series of Aspire is a stunning line of accessories like Atlantis, Atlantis EVO, Atlantis 2, Atlantis Mega, and others. The double wicking efficiency of the product when coupled with the lower positioned wick points result in ultra-effective juice flow which only adds to the great flavors of the vape. It has an innovative tank system that provides the users with an improved and adjusted airflow, a massive 5ml e-liquid capacity, and a lot more.
Aspire Elite Kit with Atlantis Mega Tank and 3000mAh CF MAXX Battery
Product Instructions
Parameters
Atlantis mega:
Capacity: 5ml
Tank: Pyres Glass
Base hardware: stainless steel
Available resistance: 0.3ohm (70-80W), 1.0ohm (40 - 50W)

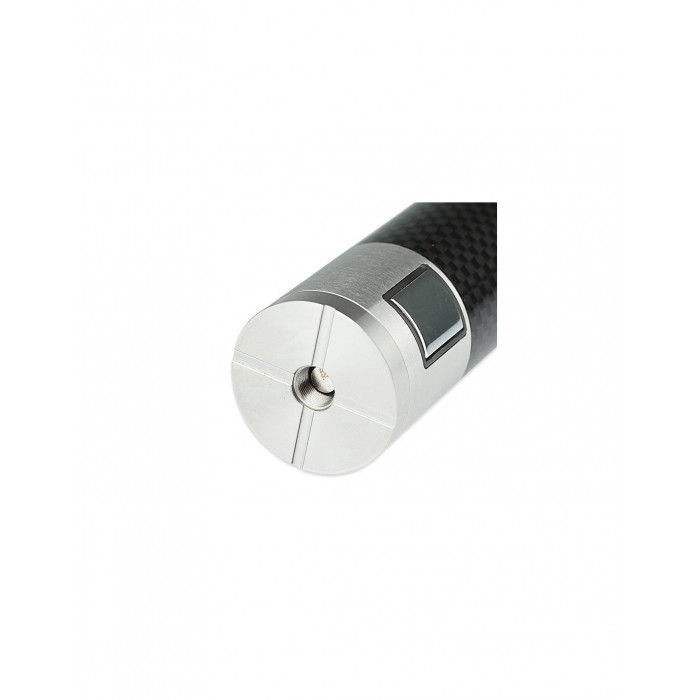

Aspire CF MAXX battery:
Battery capacity: 3000mAh
Variable Wattage: 5 - 50W
Compatible with: 0.3 - 5.0ohm
Output Voltage: 4.2V full power output
Color: Black
Aspire Elite Kit 3000mAh contains
- 1 x Aspire CF MAXX 3000mah
- 1 x Atlantis mega 5ml (1.0ohm pre-installed)
- 1 x extra 0.3ohm replacement atomzier head
- 1 x USB CHARGER
- 1 x Atlantis Mega replacement pyrex glass tube
- 1 x start guide
Simple packing. Customary Packing from the factory, the packing is subject to change without notice.
Detailed Instructions
Features
1. 5ml capacity tank
2. Cooling system design with tnk
3. 100% organic cotton
4. Cloud vapor production
5. 3000mah large capacity
6. Variable wattage 5-50W
Operation Guide
How to fill atomizer
1. Turn upside down the cartomizer, and then screw off the bottom hardware.
2. Use the syringer or dropper to fill less than 5ml e-liquid into the space between the glass tank and the center metal tube. Do not overfill it.
3. Carefully screw on the bottom hardware, connect it with the battery and enjoy it.
How to control the Airflow
You can rotate the airflow control valve to choose the most comfortable one.
Turn ON/OFF: Press button 5 times in succession in 2 seconds. The LED will blink 3 times (both blue and orange lights) and the button will illuminate Blue when active and ON. Repeat this procedure to turn battery OFF.
Usage of battery: Press the LED button and inhale at the same time.
LED Light Indicator: Blue LED light will display for battery cell voltage of 3.5-4.2V. The Orange LED indicates a voltage less than 3.5V.
Charging Instructions:
-Unscrew the battery from the vaping components.
-Gently screw battery into the USB charger.
-Plug the USB into the supplied wall charger or computer.
-The battery will flash 3 times and then turn solid in color (Orange light in 3.2-3.5V, Blue light in 3.5-4.15V).
-The light on the USB charger will be red when charging.
-Once fully charged, the USB charger will display a green light, and the LED light on battery will turn off.
-Overcharge Protection: When battery is overcharged (voltage beyond 4.25V), the built-in microchip will automatically stop battery charging.
-Overdischarge Protection: When battery cell voltage is less than 3.3V (low battery), the atomizer will remain OFF, and the Orange LED light will blink 15 times.
-Atomizer Short Circuit Protection: If heating coils are short-circuited while vaping, the LED lights (both colors) blink 3 times, and the battery will default to “sleep mode.â€
-Charging Short Circuit Protection: If the charger is short-circuited while charging, the battery will default to OFF position, stop charging, and the LED lights (both colors) will flash 6 times.
-Lock and Unlock Function: To lock the battery, press the button 5 times in succession in 2 seconds. The LED lights (both colors) will flash 3 times. Repeat this procedure or recharge to unlock.
Order Tips
- Aspire Elite Kit 3000mAh contains 510/eGo thread.
- There is CE mark on the battery.
- You shall buy e-juice separately.
- You can use Atlantis coil or Triton coil with it. (Atlantis is not compatible with Triton Mini coil. )
- You must use 1A AC adapter to charge it. (as recommend by the manufacturer)
Guarantee
DOA (Dead on Arrival) ONLY!
