Vanguard Cavalry VTC80 TC MOD 4400mAh

About Vanguard Cavalry VTC80 TC MOD 4400mAh

Vanguard is the main vaporizer that at long last conveys a delightful and incredible tasting vapor encounter joined with steady and dependable execution.

Vanguard Cavalry VTC80 VW/TC MOD Kit - 4400mAh

Parameters

Cavalry VTC80 MOD

Size (H x L x W): 89mm x 51mm x 24mm

Casting: Aluminum and stainless steel

Output mode: TC mode / VW mode

Output Wattage Range: 5W - 80W

Output Voltage Range: 0.5V - 10V

Resistance Range: 0.15ohm - 3ohm

Temperature Range: 280 - 600F / 140 - 315℃

Capacity: Built in 4400mAh battery

Thread: 510

Display: OLED

Olympus TFS Tank

Size: 76mm (L); 22mm (D)

Capacity: 2.0ml

Vanguard Cavalry VTC80 TC MOD 4400mAh contains

• 1 x Cavalry VTC80 MOD
• 1 x Olympus TFS Tank

• 1 x Micro USB cable
• 1 x Replacement Atomizer (0.2ohm)

• 1 x Manual

Simple packing. Customary packing from the factory, the packing is subject to change without notice.

Detailed Instructions

Features

1. 80W VW/TC MOD with a Rotary Wheel
2. Built-in 4400mAh Battery
3. Top-filling Olympus Tank
4. Two Airflow Adjustable Setting

5. Patented NiT coil with TEMP control function

Operation Guide

Power on/off:

Press the power button 5 times in quick succession to turn the device on/off.

Adjustment of wattage or temperature:

Shift between two modes: Quick press the power bottom 3 times to switch between VW / TC Modes;

You can adjust the wattage or TEMP by revolving the rotary wheel, the OLED screen will show changes.

Lock the VW or TC MOD:

Long press the power bottom while turn the rotary wheel upwards to lock the VW/ TC Mods; Repeat the same action will unlock the setting.

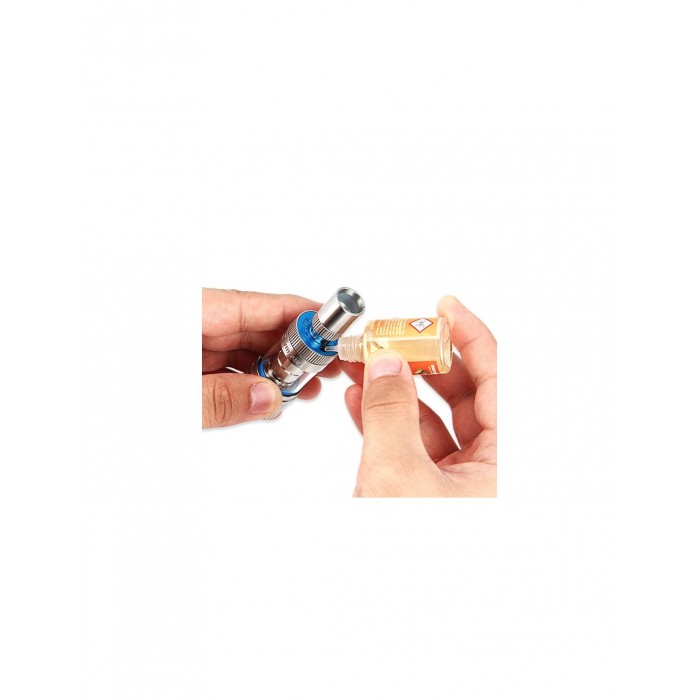

Filling E-Juice:

1. Refilling the e-Juice from the top

2. Turn the decorative ring counter clockwise until refilling hole is completely open;

3. Refilling e-Liquids through this hole;

4. Turn the decorative ring clockwise to the end to ensure the juice is completely sealed.

Adjust Airflow:

1. there's 2 level of airflow settings on the bottom of the tank;

2. Each level has stopper to keep the adjustable valve in steady position;

3. You can adjust the airflow at the top of the tank to reduce the mouthpiece temperature.

Order Tips

• Vanguard Cavalry VTC80 TC MOD 4400mAh contains 510 thread, can work with ego/510 threaded clearomizers/tanks.
