About SMY SDNA 75W TC MOD
SMY is a company that strives to create only the highest quality vapes. They focus primarily on creating box mods that are trustworthy and reliable, each one designed to be as powerful as possible. They offer variable wattage vapes that range between 180 and 260 maximum wattages, as well as temperature control devices that give you even more customization power than ever. In this section, we offer the best of the best SMY vapes for you to choose from, all at a low price.
Product Instructions
Parameters
Size: 84 x 41 x 23(mm)
Output Wattage: 1W - 75W
Voltage: 0.2V - 6.0V
Working Modes: TC-Ni/TC-Ti/TC-SS/VW
Resistance Range: 0.08ohm - 3.0ohm
Temp Range: TF 200 - 600F, TC 100-300℃
Thread: 510 spring loaded
Cell type: 1* high rate 18650 Battery with discharging current above 30 (NOT included)
Charging: USB port
Screen Size: 0.91inches OLED screen
Material: high-end Zinc Alloy
SMY SDNA 75W TC MOD contains
- 1 x SMY SDNA75 box MOD
- 1 x USB Cable
- 1 x Manual
Simple packing. Customary packing from the factory, the packing is subject to change without notice.
Features
1. Newest genuine Evolv DNA75 chip
2. 75W Max Output Wattage
3. High-end Zinc Alloy material
4. Supporting TC-Ni/TC-Ti/TC-SS/VW modes
5. Single high rate 18650 battery
6. Adjustable colorful LED light on power button

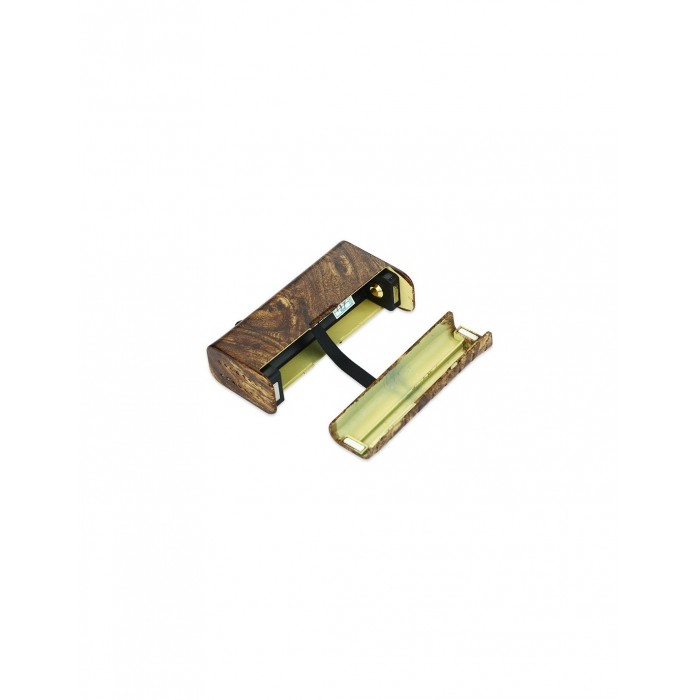

7. Magnetic battery cover
8. Stainless steel spring-loaded 510 thread
9. Convenient USB port charging
10. Ergonomically designed with gun-handle appearance
11. Can be set up through Escribe software
Operation Guide
Locked Mode: Press the fire button 3 times with less than 0.7 seconds will cause the device to enter Locked Mode. You can press the fire button 3 times again to exit Locked Mode.
Power Locked Mode: Holding down both the up and down buttons for 2 seconds will place the device in Power Locked Mode. Under this mode, you will not change the power setting. To exit it, hold up and down buttons for 2 seconds.Temp Control Mode: In locked Mode, holding down both the up and down buttons for 2 seconds will place the device in TC Mode.
If you double press the up or down button, you can change the modes:"TC ONLY", "TC SOFT-", "TC SOFT", "TC NORMAL", "TC BOOST", "TC BOOST+" and "OLD TC".
Stealth Mode: While locked, holding the fire and down buttons simultaneously for 5 seconds will switch to stealth Mode. You can do it again to switch back to normal mode.
Resistance Lock: Under Locked mode, hold both the fire and up buttons for 2 seconds to enter Resistance lock mode. Repeat the action will unlock it.
You can download Escribe (at evolvapor site) to get your SDNA75 connected with a computer.
- No 18650 batteries included. You shall purchase separately.
- 510 thread.
Guarantee
Please check Guarantee Policy.
Guarantee period: 6 months for SMY SDNA75 MOD.
