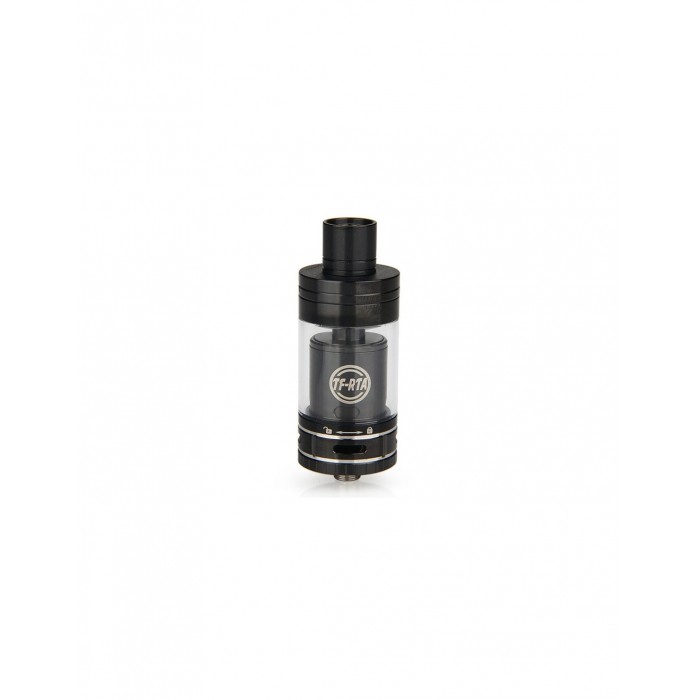

About SMOK TF-RTA Tank 4.5ml
SMOK is a vaping company, which was established in 2010 and is based in Shenzen that has taken the vaping world by storm. This company is known for their innovation, resulting in the first atomizer having dual coils. The company is highly regarded as being the most advanced in the industry, and is known for their R&D team, which is meticulous in coming up with new advances.
Re-buildable atomizers have been reinvented with the SMOK TF-RTA. This atomizer has a tank diameter of 24.5mm and it is available with two different options for deck build. These include the Velocity style G2 decks and the G4 decks of quad coil facility. The juice tank has special features to control the flow of the juice and a swivel cap to facilitate filling up of the tank from the top. The device is also accustomed with drip-tips which are double layered and airflow holes which are four in number and of the Cyclops version with adjustable features.
SMOK TF-RTA Tank - 4.5ml
Parameters
Size (height x diameter): 65mm x 24.5mm
Capacity: 4.5ml
Material: Glass & Stainless Steel
Thread: 510
Color: Black, SS
SMOK TF-RTA (G4 edition) comes with
- 1 x TF-RTA Tank (24.5mm)
- 1 x TF-RTA G4 Deck (Pre-installed)
- 1 x Screwdriver for G4 Deck
- 1 x Replacement Glass tube
- 1 x SMOK Vape band
- 1 x User manual
- Spare Parts
SMOK TF-RTA (G2 edition) comes with
- 1 x TF-RTA Tank (24.5mm)
- 1 x TF-RTA G2 Deck (Pre-installed)
- 1 x Screwdriver for G2 Deck
- 1 x Replacement Glass tube
- 1 x SMOK Vape band
- 1 x User manual
- Spare Parts
Simple packing. Customary packing from the factory, the packing is subject to change without notice.
Detailed Instructions
Features
Top-filling
Super big off-base deck
Hidden sealing ring
Innovative juice flow control system
Adjustable airflow system with four large air slots
G2 and G4 editions
Operation Guide
HOW TO BUILD THE RTA(G4)
1.Before starting make sure your hands are clean.
2.Taking the TF-RTA G4 deck apart.
3.Installing the pre-wrapped coil. Insert one end of your coil into the up-side screw, and the other end into the down-side screw.
4.Positioning and cutting the exceeding ends of wire off. Make sure the coil is fixed and lined up with the air hole, and also make sure the coil is NOT touching the deck. Then cut the exceeding ends of wire off.
5.Cutting a strip of cotton and make sure it's just larger than the coil you built.
6.Inserting the cotton, and placing it in the middle.
7.Cutting the wick at an angle and make sure it's not too short and not too long.
8.Wet the coil with your e-liquid and adjust the wick.
Warning: Coils must be checked for resistance before they are fired on a device, and re-checked periodically to ensure the resistance remains the same.
HOW TO BUILD THE RTA(G2)
1.Before starting make sure your hands are clean.
2.Taking the TF-RTA G2 deck apart.
3.Installing the pre-wrapped coil. Insert one end of your coil into the left-side holes, and the other end into the right-side holes.
4.Positioning and cutting the exceeding ends of wire off. Make sure the coil is fixed and lined up with the air hole, and also make sure the coil is NOT touching the deck. Then cut the exceeding ends of wire off.
5.Cutting a strip of cotton and make sure it's just larger than the coil you built.
6.Inserting the cotton, and placing it in the middle.
7.Cutting the wick at an angle and make sure it's not too short and not too long.
8.Wet the coil with your e-liquid and adjust the wick.
Warning: Coils must be checked for resistance before they are fired on a device, and re-checked periodically to ensure the resistance remains the same.
Order Tips
- SMOK TF-RTA Tank 4.5ml contains 510 thread.
- It doesn't come with e-juice. You need buy it separately.
