About SMOK TF-RTA G2 Deck
SMOK is a vaping company, which was established in 2010 and is based in Shenzen that has taken the vaping world by storm. This company is known for their innovation, resulting in the first atomizer having dual coils. The company is highly regarded as being the most advanced in the industry, and is known for their R&D team, which is meticulous in coming up with new advances.
Re-buildable atomizers have been reinvented with the SMOK TF-RTA. This atomizer has a tank diameter of 24.5mm and it is available with two different options for deck build. These include the Velocity style G2 decks and the G4 decks of quad coil facility. The juice tank has special features to control the flow of the juice and a swivel cap to facilitate filling up of the tank from the top. The device is also accustomed with drip-tips which are double layered and airflow holes which are four in number and of the Cyclops version with adjustable features.
Product Instructions
Parameters
Color: Steel
Type: G2 Deck

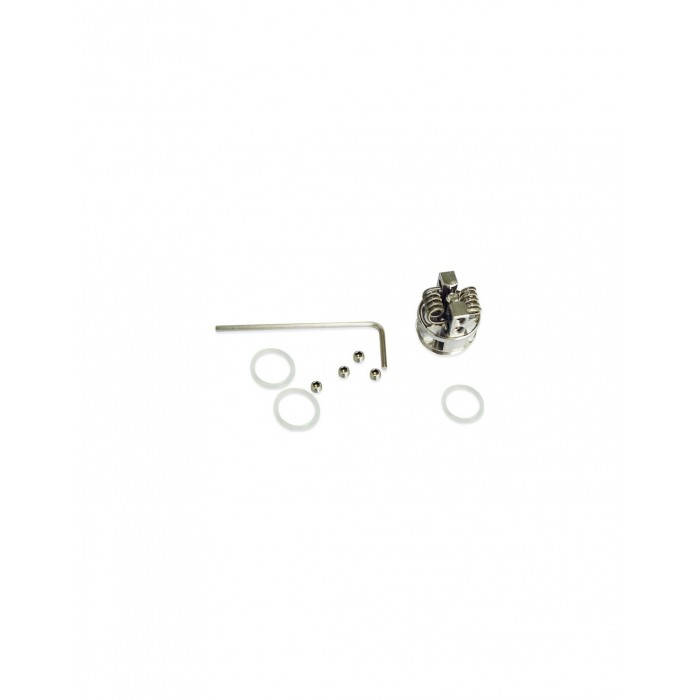

G2 Deck comes with
- 1 x TF-RTA G2 Deck
- 1 x Allen Key screwdriver
- 2 x Replacement screws
- 2 x Sealing Rings
Simple packing. Customary packing from the factory, the packing is subject to change without notice.
Operation Guide
How to build the G2 Deck:
1. Before starting make sure your hands are clean.
2. Taking the TF-RTA G2 deck apart.
3. Installing the pre-wrapped coil. Insert one end of your coil into the left-side holes, and the other end into the right-side holes.
4. Positioning and cutting the exceeding ends of wire off. Make sure the coil is fixed and lined up with the air hole, and also make sure the coil is NOT touching the deck.
Then cut the exceeding ends of wire off.
5. Cutting a strip of cotton and make sure it’s just larger than the coil you built.
6. Inserting the cotton, and placing it in the middle.
7. Cutting the wick at an angle and make sure it’s not too short and not too long.
8. Wet the coil with your e-liquid and adjust the wick.
Warning: Coils must be checked for resistance before they are fired on a device, and re-checked periodically to ensure the resistance remains the same.
- It's for SMOK TF-RTA Tank .
