About SMOK Spirals Plus Tank 4ml
SMOK is a vaping company, which was established in 2010 and is based in Shenzen that has taken the vaping world by storm. This company is known for their innovation, resulting in the first atomizer having dual coils. The company is highly regarded as being the most advanced in the industry, and is known for their R&D team, which is meticulous in coming up with new advances.
The Spirals by SMOK is a sub ohm tank. It includes cotton imported from Japan and also has a brand new coil along with a compact wicking hole. In combination with the bottom adjustable workflow, it produces strong flavors and large vapors. As compared to Spirals, Spirals Plus comes with a diameter of 24.5ml and a tank capacity of 4ml.

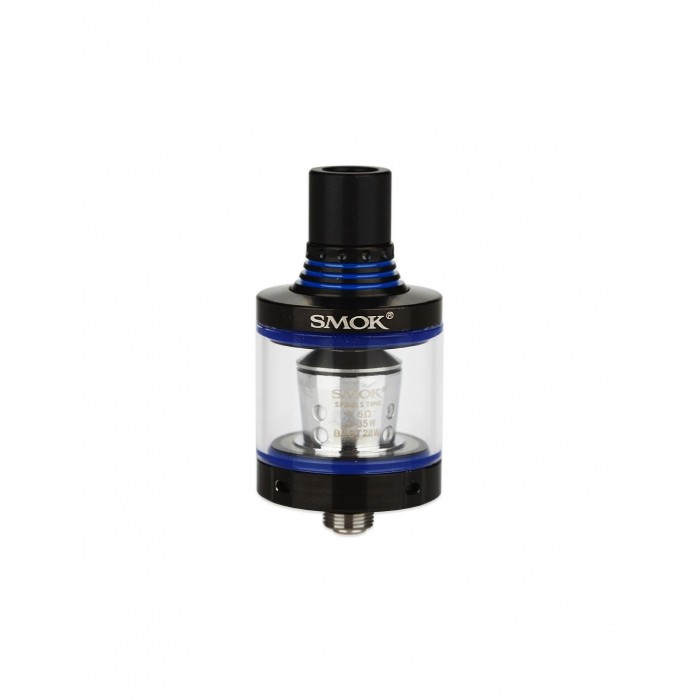

SMOK Spirals Plus Tank - 4ml
Product Instructions
Parameters
Size: 24.5 x 48mm
Capacity: 4ml
Material: SS
Thread: 510
SMOK Spirals Plus Tank 4ml contains
- 1 x Spirals Plus Tank
- 1 x 0.6ohm dual core (pre-installed)
- 1 x 0.3ohm dual core
- 1 x RBA coil (single coil deck)
- 1 x Replacement glass tube
- 1 x User Manual
- Spare parts
Simple packing. Customary Packing from the factory, the packing is subject to change without notice.
- It doesn't come with liquids, you shall buy it separately.
- You can buy replacement Spirals coil and Spirals RBA coil.
- 510 thread
- You can download certificates.
Features
24.5mm diameter and 4ml capacity
New large coil head
Adjustable small size air slots
Elongated delrin drip tip
Top filling system
Operation Guide
How to fill e-Juice:
1. Hold the tank with one hand, and use another one to press top cap and move it clockwise.
2. Add e-liquid through the slot, and pay attention not to drip in the central airflow;
3. Close the cap carefully and firmly. Then let it stands for several minutes to get the organic cotton completely saturated.
How to build the RBA:
1. Before starting make sure your hands are clean.
2. Taking RBA deck apart.
3. Installing and positioning the pre-wrapped coil. Place the coil between the posts and wrap the ends around the screws and tighten up, once all in place make sure the coil is fixed in the center and lined up with the air hole, and also make sure the coil is NOT touching the base.
4. Cutting the ends of wire off.
5. Cutting a strip of cotton and make sure it's not too much and not too less.
6. Inserting the cotton, and placing it in the middle.
7. Cutting the cotton at an angle and make sure it's not too short and not too long.
8. Wet the coil with your e-liquid and adjust the cotton.
Warning: Coils must be checked for resistance before they are fired on a device, and re-checked periodically to ensure the resistance remains the same.
