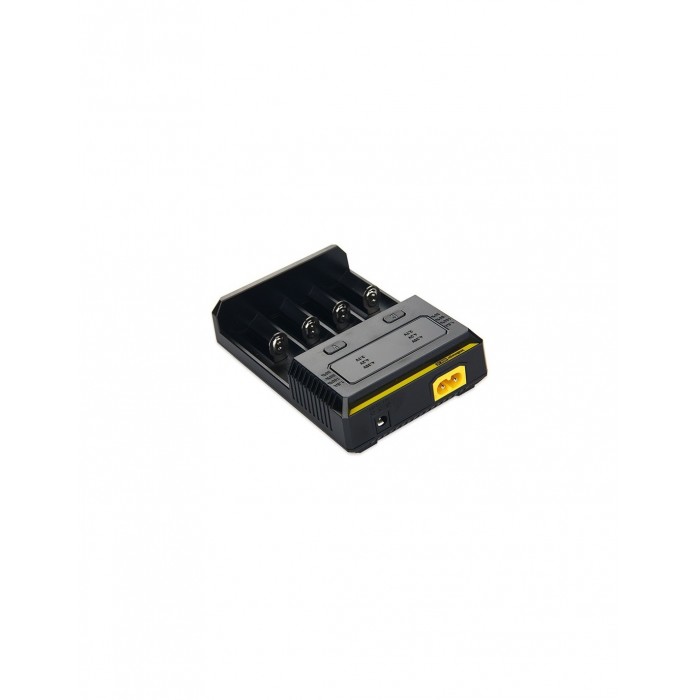

Nitecore Intellicharger New I4 Li-ion/NiMH Battery 4-slot Charger

About Nitecore Intellicharger New I4 Li-ion/NiMH Battery 4-slot Charger

The Nitecore Charger is offered at the most economical price with amazing quality. You can enjoy the best vaping experience by choosing VapeNico to purchase the Nitecore charger for an e-cigarette.

Nitecore Intellicharger New I4

Product Instructions

Parameters

140mm x 94.8mm x 37mm

Input

AC 100~240V 50/60Hz 0.25mA(max) 10W
DC 9~12V 1A

Output

4.35V±1%/4.2V±1%/ 3.7V±1%/1.48V±1%
1.5A×1/0.75A ×2/0.5A ×2/0.375A ×4

Compatible with

Li-ion/IMR/LiFePO4:
10340, 10350, 10440, 10500, 12340, 12500, 12650, 13450, 13500,

13650, 14350, 14430, 14500, 14650, 16500, 16340(RCR123),
16650, 17350, 17500, 17650, 17670, 18350, 18490, 18500,18650,
18700, 20700, 21700, 22500, 22650, 25500, 26500, 26650
Ni-MH(NiCd):

AA, AAA, AAAA, C, D

Attention: Distributors / Wholesalers may have some risks to sell Nitecore products in Germany from exclusive distributor.

According to the factory's requirement, defective Nitecore products must be sent back to us for replacements. Thanks for your understanding.

Features

• Capable of charging 4 batteries simultaneously
• 100% charging acceleration
• Active current distribution technology
• Expanded compatibility to support 3.7V and 4.35V batteries
• IMR battery restoration
• Automatic detection of non-rechargeable batteries
• Automatic current selection based on battery capacity
• Automatic adoption between three charging modes (CC, CV and dV/dt): Optimal -dV/dt charging for Ni-MH/Ni-Cd batteries and charging program optimized for IMR batteries
• Reverse polarity prevention and short circuit prevention
• Overcharging timeout protection and over-discharged battery activation
• Automatic intelligent temperature control and protection
• Uncluttered and concise design, artisan craftsmanship and comprehensive power compatibility,
  Compatible with 1.2V, 3.7V, 4.2V, 4.35V batteries
• Terminating threshold for battery voltages and charging current can be set independently for each individual slot
• Automatically detects battery power status and displays charging progress
• Designed for optimal heat dissipation, made from fire resistant, flame retardant PC materials, certified by RoHS, CE, FCC and CEC


Power on: Connect the NEW i4 to an external power source (such as vehicle adaptor, power socket) with its charging cord.
Battery placement: Put one batteries in each independently-controlled slot according to the polar mark on the charger.
Battery identification: All Four LEDs indicators will be lit when Lithium batteries are placed in, two lower LEDs will be lit
when Ni-MH batteries are placed in. Charging begins in two seconds.
Battery inspection and error reporting: The NEW i4 automatically distinguishes rechargeable batteries from
non-rechargeable batteries. It automatically reports errors when non-rechargeable Lithium batteries are inserted, or batteries
are short-circuited or inserted backward, all four LED indicators will blink, and the charging process will be halted.
Note:
(1) The non-rechargeable Lithium battery detection is an ancillary function.
a. The main purpose of this function is to identify completely discharged CR123 batteries in case that such batteries
are inserted for charging, which could lead to explosion.
b. Due to the diversity of battery chemicals, the charger cannot detect all non-rechargeable batteries. Please do not
insert any batteries known as non-rechargeable in the charger.
Smart charging: The NEW i4 adopts the appropriate charging currents based on battery types and capacities. Whilst the
option to adjust the current is also available. The NEW i4 is compatible with:
1) 3.7V Li-ion rechargeable batteries
2) 3.8V Li-ion rechargeable batteries
3) 1.2V Ni-MH/Ni-Cd rechargeable batteries
4) 3.2V LiFePO4 batteries
During the charging process, the three indicator LEDs indicate the batteries' status.
