About NCR New Concept RDA
NCR is a company that widely devoted to offering excellent E cigarettes to its customers. The goal of this company was to always deliver a nicotine product that could deliver a premium quality beeping experience. The E cigs that they deliver offer a smooth draw and a fantastic way to curb a smoking habit.
Specification
Parameters
Size: 24(D) x 40mm (H) (with 510 thread)
WAFER Material: SST aluminum nitride
WAFER Heater Resistance: 0.4-0.5ohm
Thread: 510 thread
Color: White
Feature
Coil-free Design, No Wire Building
600,000 Times Cycle-use WAFER Heater(0.4-0.5ohm resistance)
Visible Outer Cover with Venting Holes
Strengthened Nicotine Effect
Easy self-cleaning
Packing
NCR New Concept RDA contains
- 1x NCR New Concept RDA
- 1x Tool Pack
Simple packing. Customary Packing from the factory, the packing is subject to change without notice.
Operation Guide

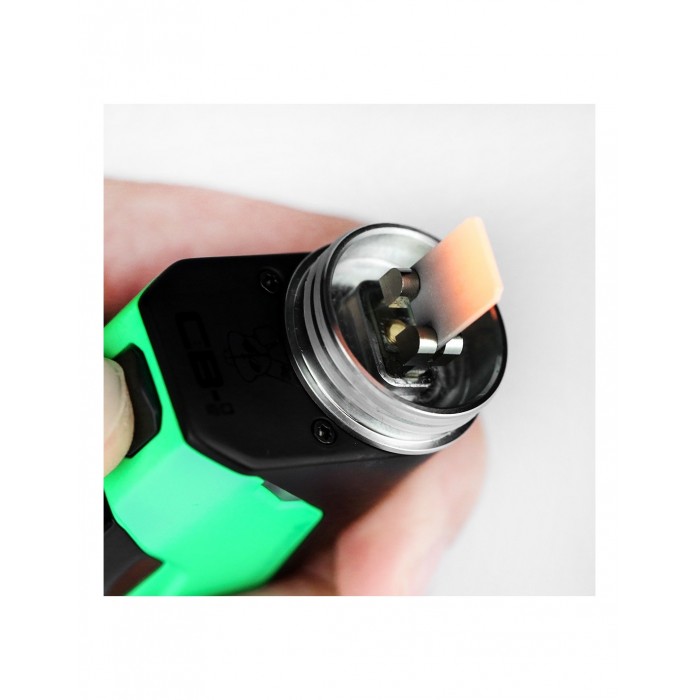

Installation and preparations: Put the Wafer Heater into the deck slot and screw it with the Allen wrench. Check the resistance by connecting it with a MOD.(Wafer heater is usually pre-installed ex-work. Due to the different feature of various mods, resistance may range from 0.4-0.5ohm accordingly.)
How to fold the cottons: Pre-cut Organic cotton is strongly recommended. Cut each piece of cotton into a strip with the size of 8mm(width)* 40mm(length). Fold the cotton strips from middle and cover the wafer heater from the top and insert the cotton ends into the deck.
How to fix the cotton holder: Put on the aluminum cotton holder to fix the cotton strips. Make sure the cotton strips are fixed properly for E-juice soaking and vaporization. Moisten the new cotton with E-juice from all the openings on the top, bottom and all 4 sides of the cotton holder.
Output modes selection: The MOD with AOC Power mode（Adjustable Output Curve）or Boosting mode is strongly recommended. To optimize the wafer heating function, please set up a considerably high wattage（70W-80)at the initial firing stage for around 0.5-1 second, then drop the wattage to a relatively low level(40W-50W) to last for another 2-3 seconds. Users may customize the Power mode settings to personal preference.
Clean the dirt and stains on the Wafer Heater: After being used for some time, you need to clean the Wafer Heater. Remove the cotton holder and give the Wafer Heater a dry burn at 30W-40W in 3 seconds. A fine grade sand paper can also be used to rubbed off the stubborn stains on the Wafer Heater. For regular maintenance you may use a toothbrush to clean the RDA deck and all connections with household detergents.
Order Tips
- The material of WAFER is safe. Please check the official announcement from NCR.
- 510 thread.
- You can select the E-liquids here/replacement wafer heater.
- You can select cotton for easy building.
- Don't use the NCR with mechanical MODs.
