About Joyetech eVic-VTC Mini with Cubis Full Kit
Joyetech is offering you electronic cigarette and e-liquid products too. They bring in a ton of VG and PG flavors too. Everything is easy to carry, and the company releases a plethora of e-cig kits for your convenience like Atopack Penguin, eVic VT, Primo and AIO, as well as Cuboid, UNIMAX and many others.
The Evic stand as one of the most in demand vegan products on the market today. It has always been a significant solution in the Ecig industry and there are many different versions of this mod on the market. Be sure to check out some of the options including the e vic basic, evic vtwo, evic vt and more. The temperature controls and the options on these items make them each great for their individual purposes.
Product Instructions
Parameters
Battery Size: 22.20 x 38.20 x 82.00mm
Output wattage: 1-60W
Temp range: 100 - 315℃ / 200 - 600F
Output mode: VT-Ti/VT-Ni/VW/BYPASS Mode
Resistance range: 0.05-1.5ohm for VT mode; 0.1-3.5ohm for VW/ BYPASS mode
Battery: 18650 rechargeable battery(not included)
Atomizer Size: 22mm(D)x60mm(L)
Atomizer Capacity: 3.5ml
Thread: 510

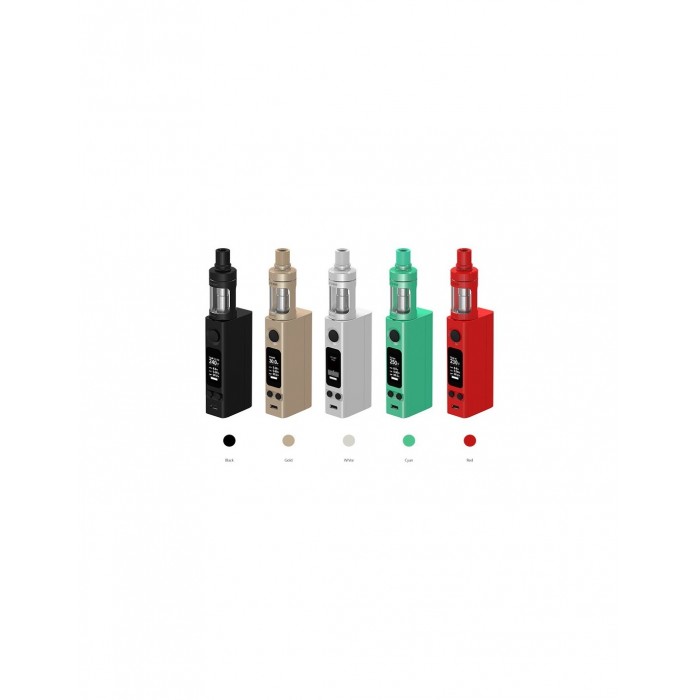

Colors: Black, Gold, White, Cyan, Red
eVic-Joyetech eVic-VTC Mini with Cubis Full Kit contains
- 1 x Joyetech eVic-VTC Mini (no battery included)
- 1 x Joyetech Cubis atomizer
- 1 x BF SS316-0.5ohm coil head
- 1 x BF SS316-1.0ohm coil head
- 1 x BF Clapton-1.5ohm coil head
- 1 x BF RBA Head (Vertical Rebuild)
- 2 x Mouthpiece
- 1 x Micro USB cable
- 1 x User manual and Warranty Card
- 1 x Warning card
Simple packing. Customary Packing from the factory, the packing is subject to change without notice.
Features
Newly START Mode, Fashionable Temp-SS316 and customized TCR Mode
Firmware Upgradeable (Firmware Version 3.01)
Replaceable Battery and Magnetic Battery Cover
Innovative Leak Resistant Cup Design
Detachable and washable atomizer structure
Various atomizer heads available
Operation Guide
Power on/off: Slide down the battery cover and put 1 18650 cell into the battery body. Press the fire button 5 times in quick succession to turn the device on/off.
Vaping: Hold the fire button and inhale through the mouthpiece. Release the Fire button and exhale.
Stealth Function: While the device is on, simultaneously hold the fire button and the left regulatory button. This will switch between Stealth on and Stealth off function. In Stealth on Mode, you can vape with the OLED screen off. To quick see your settings in stealth on mode, you can tap the fire button to display the settings.
Adjustment Lock function:
While the device is on, simultaneously press the two regulatory buttons.This will switch between Adjustment Lock and Adjustment Unlock function.In adjustment Lock mode, the regulatory button will not function to prevent accidental VT/VW/Bypass setting adjustments.
Shift Between VT/VW/Bypass Mode:
1. Press the fire button 3 times to enter the menu. The OLED screen presents 4 rows of information. Temp Ni, Ti, VW and Bypass. In Temp mode, it displays output power. In VW and Bypass modes, it displays output wattage. Atomizer resistance. (in VT mode, resistance lock will be displayed)
User information will also display.
2. After pressing the fire button 3 times, the first row will flash to indicate you enter into the menu. Press the right regulatory button to switch between VT-Ti/VT-Ni/VW/ BYPASS Mode. Press the fire button, or leave the display to flash 10 times on the current setting to confirm and exit the menu.
VT-Ni, VT-Ti mode:
In VT mode, coil temperature can be adjusted (from 100-315℃ or 200-600°F) by the regulatory button. A momentary turn of the regulatory button will increase the temperature by increments of 5℃ or 10°F. Long pressing the right or left regulatory button will rapidly increase or decrease the temperature setting.
VW Mode: In VW mode output wattage can be adjusted from 1W-60W by pressing the regulatory button. Long pressing the right or left regulatory button will make the wattage setting rapidly increase or decrease.
Bypass Mode: only the resistance of atomizer head is under the range of 0.1-3.5ohm can the device work properly.
Charging :The battery charge indicator will flash when the remaining charge is below 10%. The battery can be recharged using the supplied micro USB cable.
- CUBIS Coils are available, BF Replacement coil and BF RBA Head.
- It doesn't come with a battery. You can 18650 batteries here.
- It doesn't come with liquids, you shall buy separately.
Guarantee
3 months for eVic VTC Mini. Please check Guarantee Policy.
Note: We now need serial number to proceed after-sales service. Please kindly preserve the serial number of product if it's available.
Click download to get certificate: CE, ROHS.
