Joyetech eMode Starter Kit 2500mAh

About Joyetech eMode Starter Kit 2500mAh

Joyetech is offering you electronic cigarette and e-liquid products too. They bring in a ton of VG and PG flavors too. Everything is easy to carry, and the company releases a plethora of e-cig kits for your convenience like Atopack Penguin, eVic VT, Primo and AIO, as well as Cuboid, UNIMAX and many others.

The Joye eMode comes with multi-mode functions and carries a simple appearance. It pairs with the eMode C2 Atomizer Head which assists in achieving the best performance of eMode for the maximum time period. You can adjust the voltage output or wattage output by making adjustments or the 360 degree regulation ring.

Joyetech eMode Starter Kit

Product Instructions
Joyetech eMode Starter Kit boasts a newly designed atomizer head, which is the second generation of Joyetech atomizer head. The 360-degree regulation makes it possible for users to adjust the voltage and wattage output. eMode also offers a variable output which changes as you puff. In addition, eMode allows you to access information about your vaping habits by connecting with MVR software.

Parameters
eMode battery
Length xDiameter: 121mm x 18mm
Capacity: 2500mAh
Voltage:3.3V-5.0V
Wattage:4.5W-11W

eMode atomizer
Length xDiameter: 66mm x 18mm
Capacity: 3ml

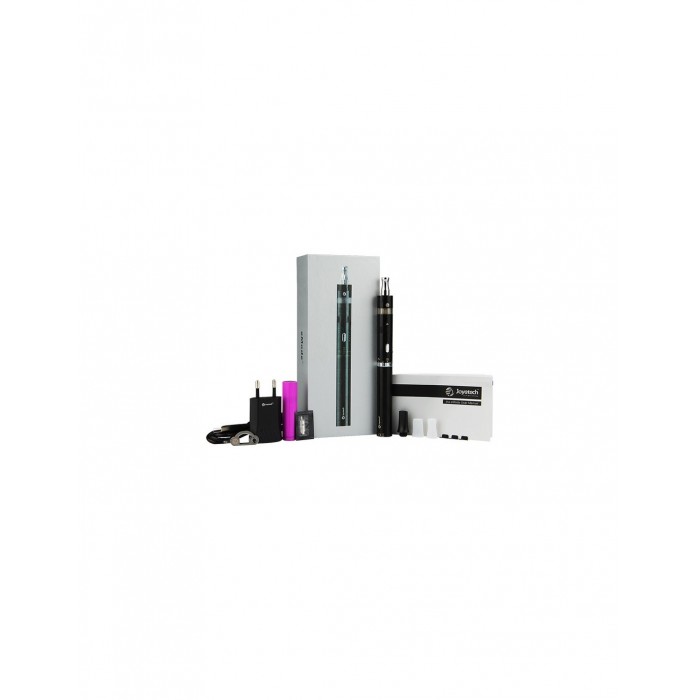

Joyetech eMode Starter Kit 2500mAh contains

• 2 x eMode Mouthpiece
• 1 x eMode Atomizer
• 1 x eMode C2 Atomizer Head (2.4ohm)
• 1 x eMode Control Head
• 1 x eMode Power Supply (16650 Li-battery)
• 1x eMode tube
• 1 x USB Cable
• 1 x Wall Adaptor
• 1 x eMode Manual

Simple packing. Customary packing from the factory, the packing is subject to change without notice.

Detailed Instructions

mode indicator, lateral USB port, 360-dagree regulation ring, air inlet adjustment hole

Features
1.More vapor by using new atomizer head, the second generation of Joyetech atomizer head.
2.Adjustable air inflow
3.Four power modes: VV,VW,RVV and RVW (RVW1,RVW2,RVW3)
4.Compatible with MVR software
5.Battery indicator

Operation Guide

Power on/off:to turn the battery on or off, please click the button 5 tims in quick succession. The button light will flash when it's turned on or off.

Air inflow adjustment:From the air inlet valve on the eMode atomizer, you can regulate the air inflow by using a straight screwdriver or a crossscrewdriver so as to set your favorite vaping draw.
When the inlet is turned upward, it will deliver the least amount of air, and the draw will be less airy, just like the eGo-T and eGo-C.
When the inlet is turned downward, it will deliver the most amount of air, and the draw will be more airy, like the eGo-CC.
When the inlet is turned to the middle (either the right or the left), it will deliver a medium amount of air.

Output voltage/wattage:While in VV or VW mode, rotate the 360-degree regulation ring on the control head either clockwise or counterclockwise to select the appropriate power output. (note: if the battery is detached and when yourestart the emode, you have to rotate the regulation ring for a revolution to reset operation.)

Mode selection:Long press (press and hold) the button to enter circular selection state and loosen the button to select the mode. There are 4 indicator lights to indicate the four modes.

Atomizer protection: If the button s held fown for longer than 10 seconds while releasing vapor, after button light flashing 10 times and the device will automatically disable use of the atomizer to protect against possible damage.

E-juice filling:Unscrew the eMode atomizer top cap and you will see two inlets on the atomizer. Simply pour the e-juice into the atomizer inlets.

Atomizer head change: Unscrew the entire eMode Body, and locate the Atomizer Head assembled on the eMode Base. Simply unscrew the Atomizer Head and replace it with a new one.

Order Tips

• No e-liquid included.
• You can choose the C2 atomizerhere.
• Please screw on the top to avoid leakage.
• There is CE mark on the end of battery cap.

Guarantee

DOA (Dead On Arrival) ONLY!

Note: We now need serial number to proceed after-sales service. Please kindly preserve the serial number of product if it's available.
