About Joyetech eGo Twist+ Kit with CUBIS D19 Atomizer 1500mAh
Joyetech is offering you electronic cigarette and e-liquid products too. They bring in a ton of VG and PG flavors too. Everything is easy to carry, and the company releases a plethora of e-cig kits for your convenience like Atopack Penguin, eVic VT, Primo and AIO, as well as Cuboid, UNIMAX and many others.
The ego twist is a Compaq style that is perfect for creating a bypass mode invariable wattage mode on your device. The cubis style atomizer utilizes a Clapton head and DL head for superior quality results. Dual protection is also included for maximum versatility. The performance is great and there is chance for customization with color coding These kits are portable and wonderful for maximizing your clouds.
Joyetech eGo Twist+ Kit with CUBIS D19 Atomizer - 1500mAh
Product Instructions
Parameters
Tank size: 19mm (D) x 56mm (L)
Battery size: 19mm (D) x 97mm (L)
Battery capacity: 1500mAh
Battery Cell Type: 18500
E-juice capacity: 2ml
Output modes: VW/BYPASS
Wattage range: 5W - 30W
Resistance range: 0.2 -3 .5ohm

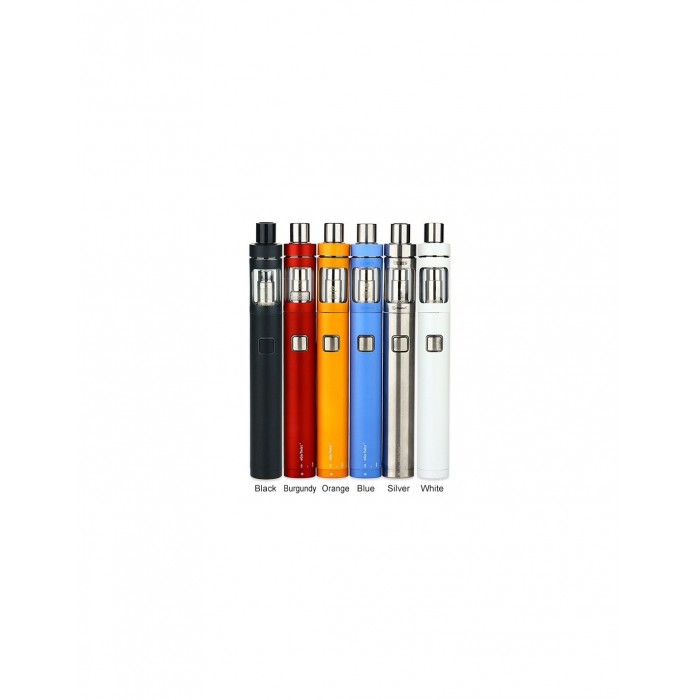

Colors: Black, Silver, Burgundy, Orange, Blue, White
Joyetech eGo Twist+ Kit with CUBIS D19 Atomizer 1500mAh contains
- 1 x eGo Twist+ Battery
- 1 x CUBIS D19 Atomizer
- 1 x NotchCoil 0.25ohm DL
- 1 x BF SS316-0.5ohm DL
- 1 x LVC Clapton-1.5ohm
- 1 x USB Cable
- 1 x Manual and Warranty Card
- 1 x Warning Card
Simple packing. Customary Packing from the factory, the packing is subject to change without notice.
Features
Alternative VW and BYPASS modes
Optimal airflow with intuitive design
Dual circuit protection
Top filling and top airflow
Anti-leakage cup design
New liquid-valve-control coil
Multiple atomizer heads can be applied
Power on and off: Press the fire button 5 times in quick succession, the button light will flash 5 times to indicate that it is ready to use. Press the fire button in the same way, the device will be powered off.
Switch VW/BYPASS modes: When the device is on, simply rotate the bottom ring to choose your mode. When you switch to VW mode, the indicator light will turn white for 2 seconds, then you're under VW mode. When you switch to BYPASS mode, the indicator light will turn orange for 2 seconds, then you're under BYPASS mode.
Adjust wattage: Simply rotate the bottom ring to choose suitable wattage (5W - 30W) under VW mode.
Protections: Short circuit protection/ Atomizer protection/ Low voltage protection/ Resistance examination
Battery Display Function: The light will flash slowly or stay lit when battery quantity is high. On the contrary, the light flashes frequently.
Battery QuantityLightcondition60% - 100%Stay lit30% - 59%Flash slowly10% - 29%Flash moderately0 - 9%Flash frequently
Charging: Simply charge the eGo Twist+ by connecting it with a PC or Joyetech wall adapter via USB cable. When it's fully charged, the charging indicator will go out.
How to assemble:
1. Screw the top cap onto the airflow ring and put the mouthpiece onto the top.
2. Drip a few drops into the atomizer head and install it onto the vent pipe.
3. Install the above part with the atomizer tube then the whole CUBIS D19 is assembled.
How to change atomizer head:
Unscrew the atomizer cap, the atomizer head is located on the cap. Just unscrew it and replace a new one.
Note:
1. Please don't wash the atomizer head with water. Simply scrub it with cotton or clean dry cloth.
2. Please drip at least 5 drops of e-juice to the atomizer head and vape a few times in power-off condition (with airflow widely open) before its first use to avoid dry burn.
How to re-filling:
Separate the atomizer from the battery, and unscrew the mouthpiece base from the atomizer cap. Inject the liquid into the e-juice hole.
Note:
1. Please don't fill in through the middle hole of the atomizer cap.
2. Please don't overfill to avoid overflown.
How to adjust Airflow:
Rotating the ring on the atomizer cap clockwise or counterclockwise to adjust the air inflow. The air inflow will be the largest when both signs match with each other, otherwise it decreases when turning left or right.
- It doesn't come with liquids, you shall buy it separately.
- Competible with BF Replacement Coil, BF RBA Head, NotchCoil DL Head, and LVC Clapton MTL Head.
- You can download FCC, EMC, LVD and RoHS certificates.
Guarantee
3 months for eGo Twist+ battery. Please check Guarantee Policy.
Note: We now need serial number to proceed after-sales service. Please kindly preserve the serial number of product if it's available.
