Heatvape Invader Mini 50W VW MOD

About Heatvape Invader Mini 50W VW MOD

Determined to add something fresh and new to the vape industry, Heatvape has emerged. This brand creates a large variety of products, each one designed with the same premium materials and with the highest quality production standards to ensure that every product created is something that will be well loved. Heatvape creates mods, RBAs and more to satisfy the needs of every vape enthusiast. Find all of your favorite Heatvape products right here at a price you'll be pleased with.

50W Heatvape Invader Mini VW MOD Express Kit

Parameters

Size: 31.5mm x 39.5mm x 102.0mm

Waterproof Level: IPX4

Materials (eco-friendly): Zinc Alloy + Silicon + Brass

Output Power: 1W - 50W

Output Voltage: 1.0V - 9.9V

Output Current: <17.6A

Ohm Limit: 0.1-1.0 Ohm in TC Mode, 0.16-2.0 Ohm in normal Mode

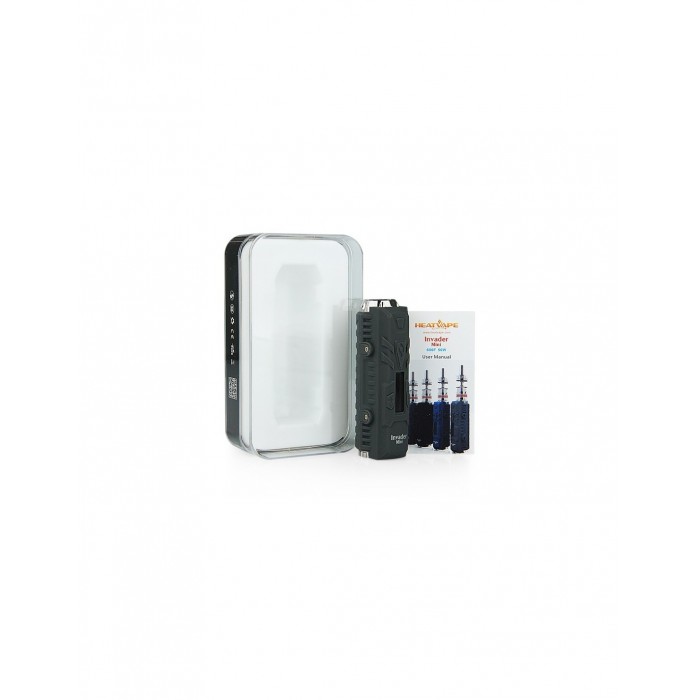

Heatvape Invader Mini 50W VW MOD contains

• 1 x Invader Mini MOD
• 1 x User Manual

Simple packing. Customary packing from the factory, the packing is subject to change without notice.

Detailed Instructions

Features

1. Water Resistance

2. Temperature Control

3. Variable Wattage

4. Right Mode and Left Mode

5. Ohm Too High/Low warning

6. Temperature Protection

7. Atomizer Open

8. Weak Battery

9. Too Hot protection

ȇ³é‡50w

Operation Guide

How To Use

1. Battery Assembly: screw off the bottom cap and insert 1pc 18650 battery (flat top or button top). Screw back the bottom cap.

2. Power on: click Fire button 5 times to turn on the device.

3. Locked Mode: Click Fire button 5 times within 0.7 seconds to lock the device. When locked, the device will not fire and the output power will not adjust accidentally. To unlock the device, just click Fire button another 5 times within 0.7 seconds.

4. Max Temperature Adjust Mode: in Locked Mode, hold Fire button and "-" Button simultaneously for 2 seconds to enter this mode. Once this mode entered, the max temperature will be displayed. The Fire button and "-" are used to adjust the max temperature. To save the chose temperature setting and exit, press the Fire button.

5. Stealth Mode: in Locked Mode, hold Fire button and "-"simultaneously for 5 seconds to enter Stealth Mode. To exit this mode, press Fire button and "-" simultaneously for 5 seconds. (This setting is stored to internal flash memory, and remains if the battery is removed)

6. Right Mode and Left Mode: in Locked Mode, hold the Fire button and "+" button simultaneously for 5 seconds to flip the display. This allows for maximum flexibility, as well as accommodating left handed use.

7. Power Locked Mode: hold "+" and "-" buttons for 2 seconds will place the device in Power Locked Mode. In this mode, the MOD will operate normally but you will not be able to change the power output setting. Hold "+" and "-" buttons for 2 seconds to exit the mode.

8. New Coil Up Same Down: when connecting atomizer to the device, if it's new, click "+". If it's same old one, then click "-" to keep the setting.

Order Tips

• No 18650 batteries included. You shall purchase separately.
• 510 threaded
• No USB port
• It's recommended to use with temperature control Ecotank subohm tank and SMOK subohm GCT tank Ni-200 -4ml.

Guarantee

Safety(+)efficiency
