About GTRS VBOY 222W 20700 TC Box MOD with SX520 Chip

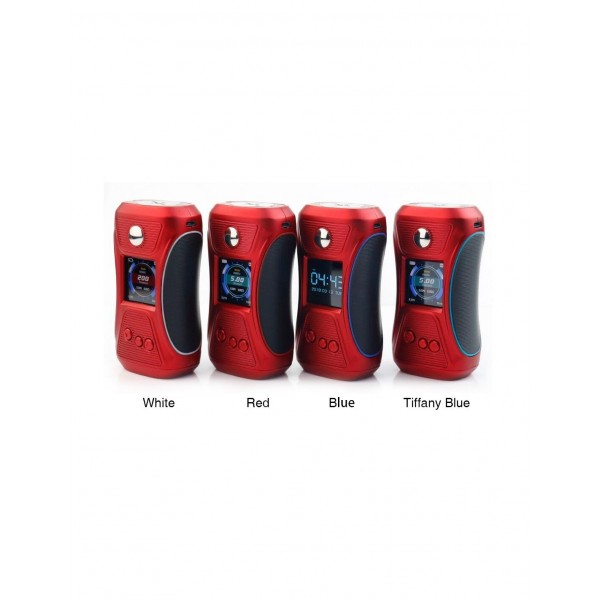

The GTRS GT 150 was launched by the GaoMeiTe Tech, in partnership with the LIMOU chip organization. If we look at its design, it is a tiny mod powering 150W output. Other features include: OLED display, double RC batteries and ergonomic design (ensures a comfortable grip).The vape data is displayed on the OLED, in a clearly visible font with a black background. A LIMOU chip is present within the GTRS GT150 mod, this chip enables versatile operation of the vape.

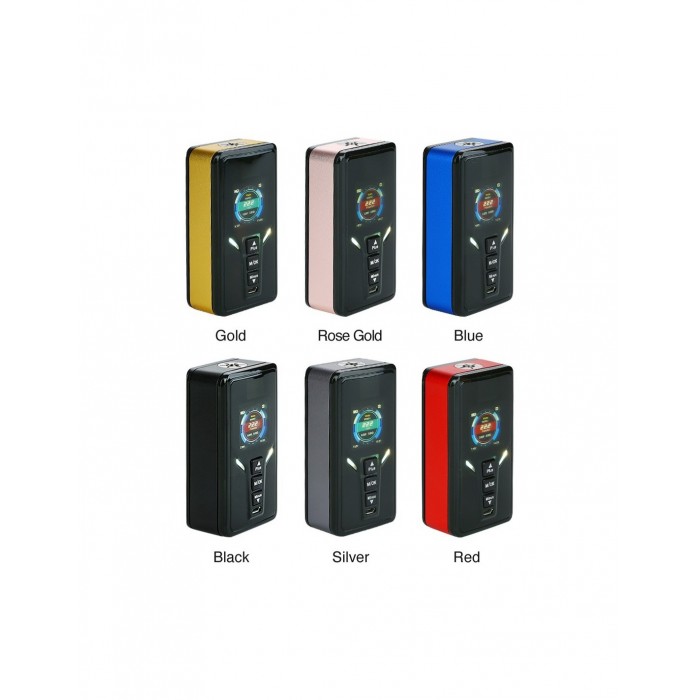

GTRS VBOY 200W, launched by YiHi and GTRS, is an e-cigarette TC box mod. Its features include HD color screen (1.3 inch TFT IPS), 240 * 240PX resolution, you can replace it with a wallpaper very easily, offers visual enjoyment. Furthermore, it consists of dual batteries (18650) and high-performance chip (SX500) which enables it to power up to 200W. The property rights for the YiHi chipset are intellectual. Batteries can be replaced easily with the battery cap that can be pushed. It is created by a popular designer Alan, and is known for its high quality design and appearance.
Specification
Parameters
Size: 93 x 49 x 31mm
Wattage: 5-222W
Resistance Range: 0.05 - 3ohm, best at 0.1 - 0.5ohm,
Temp range: 200F- 600F/ 100℃- 300℃
Battery: 2 x 20700 Batteries (not included)/2 x 18650 batteries (with an adapter, not included)/2 x 21700 Batteries (not included)
Modes: TC-Ni/TC-Ti/TC-SS/VW/TCR
Joule mode(J): 10-120J, Support Ni200/Ti/SS316L
Voltage: 6.4 - 8.4V
Power & Joule Memories: Each M1 - M5
Thread Type: 510 thread
Feature
YiHi SX520 High-performance Chipset
Dual 20700 cells with 222W output
Compatible with 18650(with an adapter)/21700 batteries
TFT IPS Full Color Display
Joule mode for Ni200/Ti/SS316L wires
Packing
GTRS VBOY 222W 20700 TC Box MOD with SX520 Chip contains
- 1 x VBOY 200 TC Box MOD
- 2 x 18650 Battery Sleeve
- 1 x USB Cable
- 1 x User Manual
- 1 x Warranty Card
Simple packing. Customary Packing from the factory, the packing is subject to change without notice.
Order Tips
- 510 Thread.
- No cell included. Compatible with 20700/21700/18650 (with an adapter).
Operation Guide
Turn on/off & Main menu operation: Click the fire button 5 times in 2 seconds, the screen shows logo then the system turns on. In standby mode, click the fire button 5 times within 2 seconds to enter the main menu, click "+" and "-" button to switch between different modes. Choose SYSTEM OFF then click Mode button, the device will be turned off.
Wattage, Joule, Temperature setting: On standby mode, click Mode button then the number will turn to red, click "+"/"-" button to increase or decrease, click Mode button switch power Watts/Jouile/TC.
Font Select: On main menu mode, click Mode button to enter the Font select, then choose Fontl or Font2 with "+" and "-" button.
Adjust Temp: On main menu mode, click "+" or "-" to choose Centigrade or Fahrenheit.
Select coil: On main menu mode, click "+" or "-" to choose Select Coil, then you can select between Ni200/Ti/SS316L/SX Pure/TCR.
Wallpaper Select: On main menu mode, choose Wallpaper Select, you can choose 1-10 wallpapers.
Brightness: On main menu mode, choose Brightness, click "+" or "-" to choose brightness 1-10.
Guarantee
6 months for VBOY 222W Box MOD. Please check guarantee policy.
