About Eleaf LED Digital Ohmmeter and Voltmeter
Eleaf is one of the most recent e-ciggereate company offering quality products along with state of the art customer support. The company has regular customers who prefer its products. Some of the products that we offer include eleaf mini iJust battery, rebuildable atomizer, elaf iJust mod, iSmoka iGo Mod and several other products. You can visit our online shop and buy ismoka electronic cigerrate to get the best e-smoking experience.
Eleaf LCD Digital Ohmmeter and Voltmeter
Product Instructions
Parameters
Size: 72.0 X 48.0 X 23.0mm
Testable Resistance: 0.01ohm - 9.99ohm
Testable Voltage: 0.01V - 9.99V
Operating Voltage: 2.2V - 5.5V
Working Current: < 10mAh (without tested object); < 30mAh (with tested object)
Standby Current: < 10uA
Eleaf LED Digital Ohmmeter and Voltmeter comes with
- 1 x Meter Device
- 1 x Connecter (510 Male to 510 Female)
- 1 x Manual
Simple packing. Customary packing from the factory, the packing is subject to change without notice.
Detailed Instructions
Features
1. LED Screen
2. Accurate to 0.01ohm/0.01V
Operation Guide

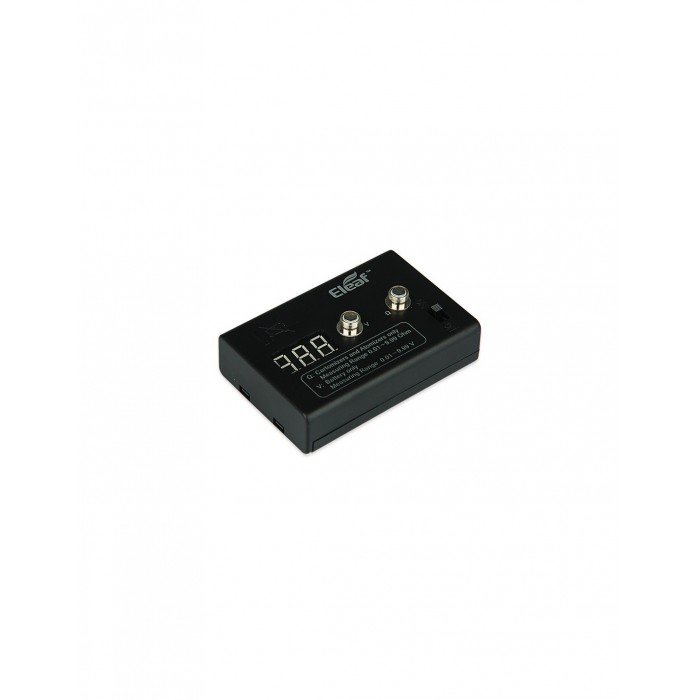

There are two ports on the Digital Ohmmeter and Voltmeter: the left one is for testing voltage of 510/eGo batteries and the right one for testing resistance of 510-threaded atomizers.
1. Open the back cover and put in two AA batteries, then close it.
2. Switch the button at the right bottom to turn on the device.
3. Screw battery to the left port and press power button, then you will see reading of voltage in the LED display. When testing the resistance of 510 atomizer, connect it to the connector, then screw the connector to the right port, the ohm reading will show in the LED display.
Attention:
When the device is turned on, the LED display will illuminate. If there is no activity for 10 seconds, the device will enter standby mode and the LED display will turn off. Once an atomizer or battery is connected to the device, it will exit standby mode and the LED display will turn back on.
Order Tips
- Eleaf LED Digital Ohmmeter and Voltmeter contains 510 threaded, compatible with 510/eGo batteries, and 510 threaded atomizers after using connector in the packet.
- If you're testing voltage of some non-cylinder batteries or eGo Atomizers, 510-eGo adapter is needed.
- No AA batteries included and two are needed. You need to purchase them separately.
