About Aspire CF VV+Battery 1000mAh
Aspire is a rising sensation in the world of e-cigarettes and is well on its way to becoming a well-known vaping brand. Currently, aspire is focused on providing the high quality batteries and cartomizers. The most popular products of Aspire are Aspire CF battery series, and Nautilus Mini Series. Being a revolutionary in its field, Aspire is aiming to lead electronic cigarette to level higher than ever before.
Aspire CF is a unique vape that has a lot of choices when it comes to its batteries. The options that are available in the battery sections include the likes of Aspire CF G-Power, Aspire CF pass-through batteries, Aspire CF VV batteries that have a number of different electric charge options, sub ohm batteries of Aspire CF, and Aspire CF MAXX batteries which have a power of 50W. The availability of USB connection via a USB cable is one of the most convenient features of this vape. The batteries of Aspire CF come with special stainless steel endpoints, carbon fiber coated tube, a metal button along with the presence of a revolutionary spring mechanism that provides better connection between the battery and the tank. Another convenient feature of this vape includes a rotary knob which can be turned to adjust the voltage.

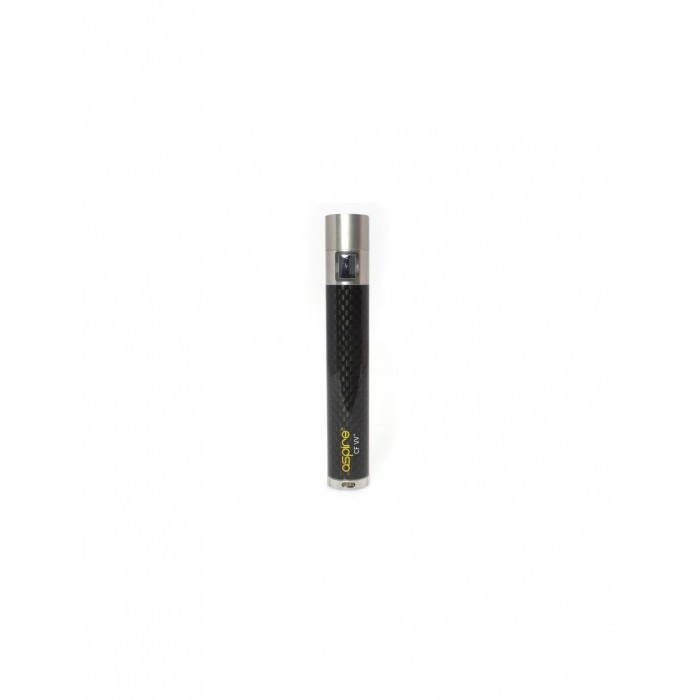

Aspire CF VV+ Battery - 1000mAh
Length x Diameter: 108mm x 17.4mm
4 colors available: Black, Blue, Red and Grey
Aspire CF VV+Battery 1000mAh contains
- 1x Aspire CF VV+ Battery - 1000mAh
- 1x User manual
Detailed Instructions
Four colors available.Embedded metal button.Variable voltage.Spring Connector.
Features
- Stainless Steel Parts
- Metal Button
- Carbon Fiber Coated Tube.
- Spring Connector
- Revolutionary Rotary Knob Design
- High Quality Cell and Control Circuit
- Perfect Inner Structure Design
- stepless variation in 3.3V-4.8V output variable voltage.
Operation Guide
Turn ON/OFF
Press button 5 times in succession in 2 seconds. The LED will blink 3 times (both blue and orange lights) and the button will illuminate Blue when active and ON.
Repeat this procedure to turn battery OFF.
LED Light Indicator
Blue LED light will display for battery cell voltage of 3.5-4.2V. The Orange LED indicates a voltage less than 3.5V.
Special Characteristic of VV
Stepless variation in 3.3V-4.8V output variable voltage.
Rotate the rotary knob at the bottom of the battery to deliver the optimal voltage for vaping needs
Overcharge Protection
When battery is overcharged (voltage beyond 4.25V), the built-in microchip will automatically stop battery charging.
Overdischarge Protection
When battery cell voltage is less than 3.2V (low battery), the atomizer will remain OFF, and the Orange LED light will blink 15 times.
Atomizer Short Circuit Protection
If heating coils are short-circuited while vaping, the LED lights (both colors) blink 3 times, and the battery will default to “sleep mode.â€
Charging Short Circuit Protection
If the charger is short-circuited while charging, the battery will default to OFF position, stop charging, and the LED lights (both colors) will flash 6 times.
Charging Instructions
1. Unscrew the battery from the vaping components.
2. Gently screw battery into the USB charger.
3. Plug the USB into the supplied wall charger or computer.
4. The battery will flash 3 times and then turn solid in color (Orange light in 3.2-3.5V, Blue light in 3.5-4.15V).
5. The light on the USB charger will be red when charging.
6. Once fully charged, the USB charger will display a green light, and the LED light on battery will turn off.
Order Tips
- Aspire CF VV+Battery 1000mAh contains 510/eGo thread.
- 650mAh, 900mAh, 1000mAh, 1100mAh and 1300mAh also available.
- No charger included.
Guarantee
DOA (Dead On Arrival) ONLY!
